Larger whole-home systems
Use the A.6x when as many as six stereo zones belong in one centralized design. Additional X Series units can be considered when the project requires more rooms, subject to rack, network and power planning.
Centralized multi-zone streaming amplification

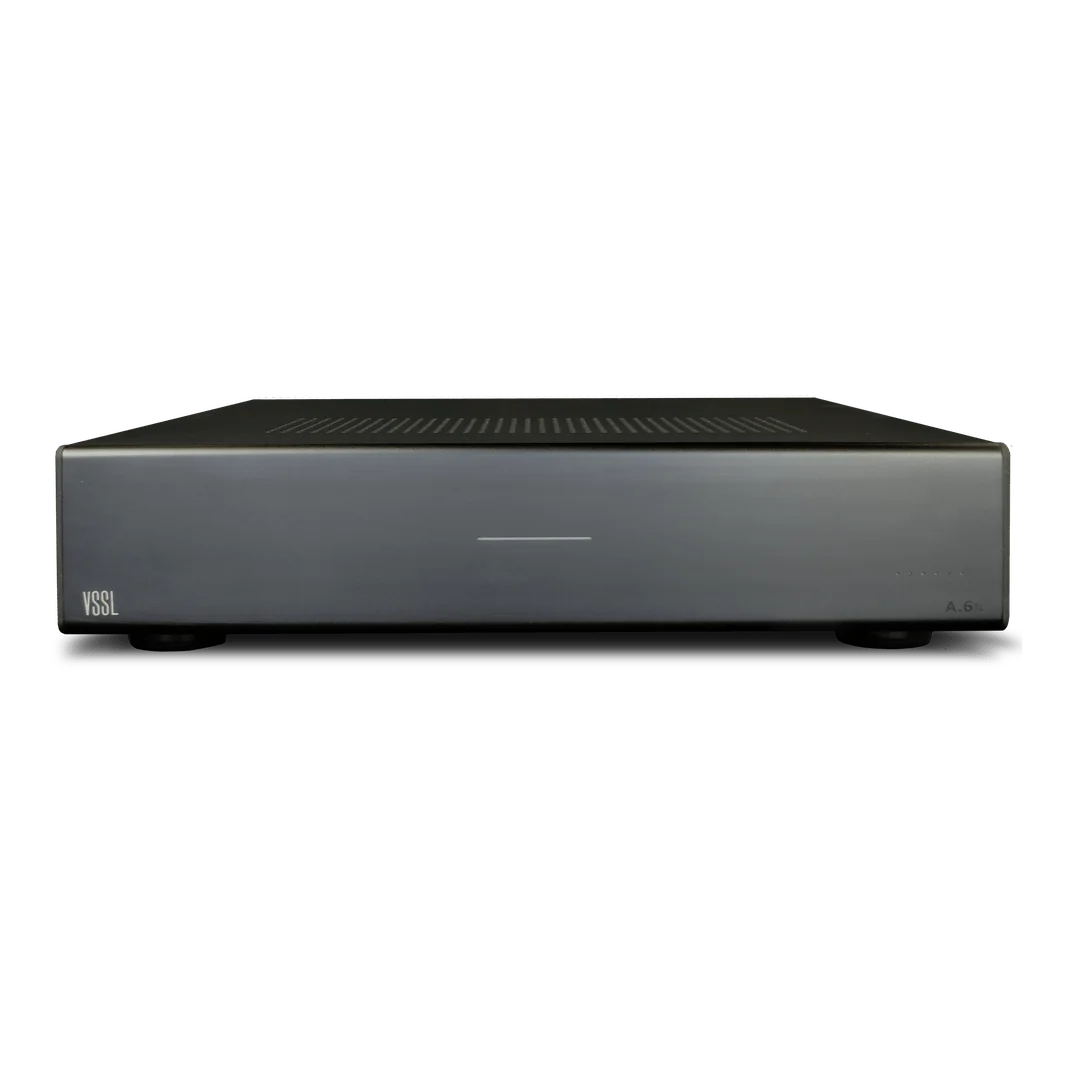

VSSL X Series A.3x and A.6x Multi-Room Audio Installation
The VSSL X Series combines multi-zone amplification and app-native streaming in one centralized platform. The A.3x provides three independently controlled stereo zones, while the A.6x expands the same approach to six. Each zone can play its own stream or join other rooms, making the family a strong fit for built-in speakers throughout a Chicago home.
Models
A.3x: 3 zones / 6 channels; A.6x: 6 zones / 12 channels
Amplifier output
50 W per channel at 8 ohms; 75 W per channel at 4 ohms
Native streaming
AirPlay 2, Google Cast, Spotify Connect and Alexa Cast
Best use
Centralized whole-home audio with passive architectural speakers
Integrator guidance
VSSL X Series A.3x and A.6x in a complete system designed by Davis Audio & Video.
A multi-room audio system should let people choose music by room without exposing the equipment that makes it work. VSSL places the amplifiers and streaming hardware in a rack or equipment location while ceiling, in-wall or properly selected outdoor speakers remain in the living spaces. The result can be visually quiet and familiar to operate.
The choice between A.3x and A.6x starts with independent zones, not simply speaker quantity. A kitchen and dining area that always play together may be one zone; a kitchen, patio and primary suite that need separate source and volume control require three. Davis Audio & Video maps those listening patterns before selecting hardware, wire topology or speaker loads.
Where the VSSL X Series fits best
The A.3x and A.6x are most useful when several rooms need discreet passive speakers, independent control and one serviceable equipment location.
Architectural and outdoor speakers
Power compatible in-ceiling, in-wall or weather-resistant passive speakers while keeping visible electronics out of finished rooms. Speaker selection and coverage remain room-specific design tasks.
Families using different devices
Apple, Android and Spotify listeners can use supported native streaming paths from familiar apps. Each available zone can play independently, and compatible zones can be grouped for shared listening.
What a properly designed X Series system adds
Centralized serviceability
Amplification, network connections and source wiring can be labeled and maintained in one rack. That keeps rooms clean and gives a technician practical access for testing, firmware work and future changes.
Flexible source distribution

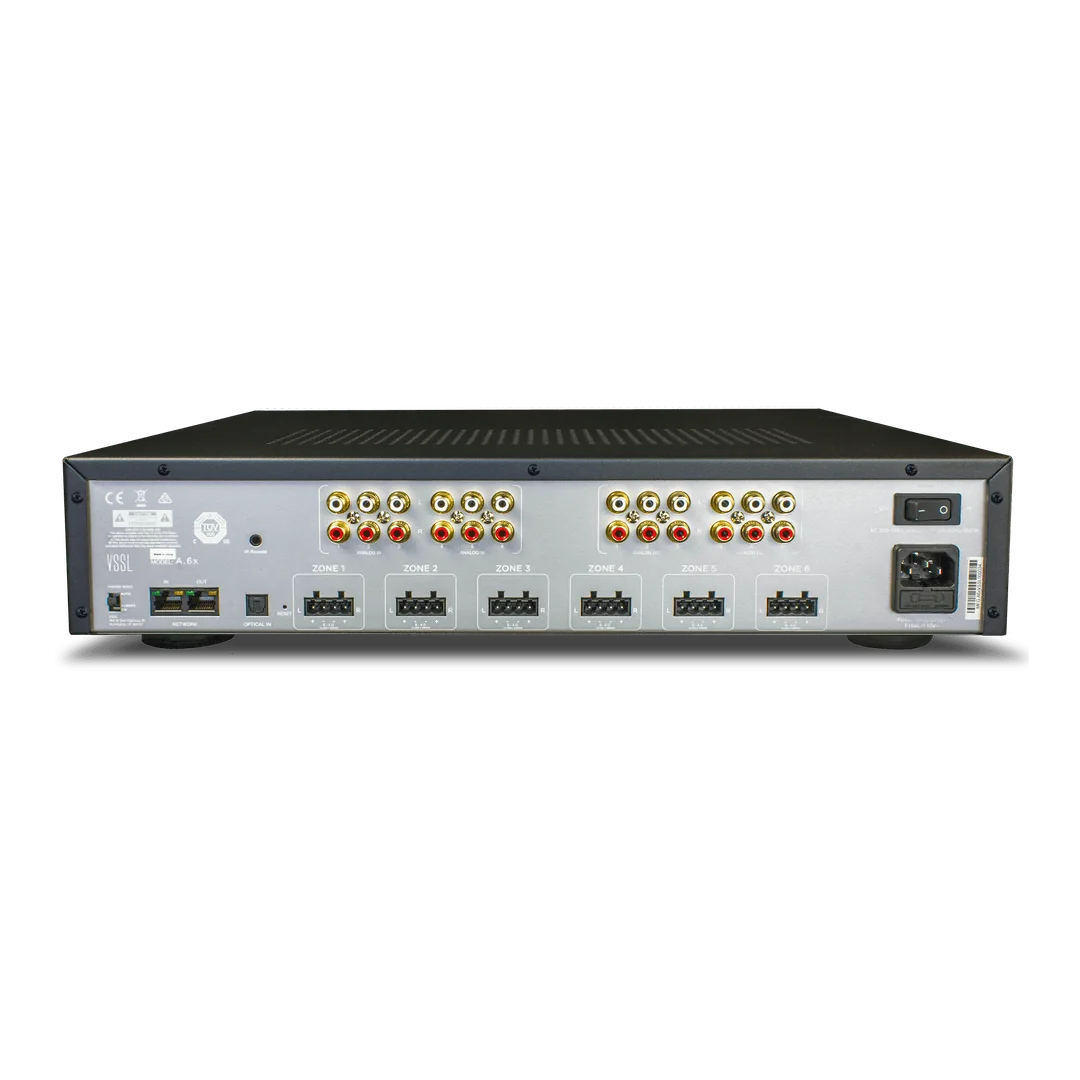

Three matrixed analog inputs and outputs on the A.3x, or six on the A.6x, support shared hard-wired sources in addition to streaming. An optical input is also listed for each model.
Power suited to many everyday zones
VSSL rates both models at 50 watts per channel into 8 ohms and 75 watts into 4 ohms. Final suitability depends on speaker sensitivity, impedance, quantity, room size, listening distance and required output.
Professional design
Why professional multi-zone design matters
Zone planning and speaker-load planning are related but different. One amplifier zone can feed an engineered group of compatible speakers that always share source and volume, but it cannot make those rooms independently controllable. Davis Audio & Video first defines the listening zones, then calculates speaker impedance, wiring method, conductor gauge and expected coverage for each output.
The A.3x and A.6x are wired-network devices. VSSL support materials call for UPnP, multicast and Bonjour behavior on the network and state that the A.3x uses four IP addresses while the A.6x uses seven. Managed switches, VLAN rules and discovery traffic therefore need to be planned before commissioning. A working internet connection alone is not proof that every phone and zone can discover one another.
How the X Series fits into a Davis Audio & Video system
With architectural speakers
Speaker type, placement and tap or impedance configuration are matched to the room. The amplifier is only one part of even coverage and natural tonal balance.
With a managed home network
The rack receives a deliberate Ethernet path, suitable switch capacity and tested discovery behavior. Network documentation includes the multiple addresses used by the chassis and its zones.
With Control4 or Crestron
Available manufacturer-listed drivers can place supported volume, source and room functions within a coordinated interface. The exact driver revision and required features are verified during design.
Specifications
VSSL A.3x and A.6x specifications
The manufacturer specifications below were reviewed July 29, 2026. Published power and performance figures describe the products; actual system results depend on speakers, wiring, room acoustics, source formats, network design and configuration.
VSSL A.3x
| Zones / channels | 3 zones / 6 channels |
|---|---|
| Amplifier | Class D |
| Power | 50 W per channel at 8 ohms; 75 W per channel at 4 ohms |
| Wired inputs | 3 matrixed analog, 1 optical, 1 IR, 1 network |
| Outputs | 3 matrixed analog, 1 network |
| Streaming | AirPlay 2, Google Cast, Spotify Connect, Alexa Cast |
| EQ | 7-band adjustable |
| Signal-to-noise ratio | Greater than 101 dB |
| Frequency response | 20 Hz–50 kHz |
| Dimensions | 17 W × 2.42 H × 10.6 D inches |
VSSL A.6x
| Zones / channels | 6 zones / 12 channels |
|---|---|
| Amplifier | Class D |
| Power | 50 W per channel at 8 ohms; 75 W per channel at 4 ohms |
| Wired inputs | 6 matrixed analog, 1 optical, 1 IR, 1 network |
| Outputs | 6 matrixed analog, 1 network |
| Streaming | AirPlay 2, Google Cast, Spotify Connect, Alexa Cast |
| EQ | 7-band adjustable |
| Signal-to-noise ratio | Greater than 101 dB |
| Frequency response | 20 Hz–50 kHz |
| Dimensions | 17 W × 4.7 H × 14 D inches with feet |
Shared infrastructure
| Network connection | Wired Ethernet for A.3x and A.6x |
|---|---|
| Power input | 115–230 VAC, 50/60 Hz, auto-switching |
| Manufacturer-listed control drivers | Control4, Crestron OS3 and Crestron SIMPL |
| Configuration | VSSL app plus the applicable AirPlay, Google Home or Alexa workflow |
Planning notes
X Series system planning considerations
- Decide which rooms must have separate source and volume control. Do not select a model solely by the number of speaker pairs.
- Confirm nominal and minimum impedance, speaker quantity, wiring topology and required output before assigning a zone. Avoid assuming that every parallel-speaker combination is safe.
- Provide wired Ethernet, suitable IP capacity and discovery rules. VSSL support currently specifies four IP addresses for an A.3x and seven for an A.6x.
- Plan chassis depth, cable bend radius, airflow, power conditioning and service access before the equipment location is built.
Davis Audio & Video process
From product decision to a system that is simple to live with.
-
01
Listening-zone consultation
Davis Audio & Video reviews rooms, listening habits, control preferences, construction conditions and future phases before assigning amplifier zones.
-
02
Speaker, wiring and network design
We match speakers and loads to each output, document cable routes, size the rack and prepare the wired network for discovery and streaming.
-
03
Clean centralized installation
Amplifiers, terminations, network connections and power are installed with ventilation, labeling and future service access in mind.
-
04
Configuration and commissioning
We configure each zone, apply appropriate EQ and limits, verify local inputs, test supported streaming paths and complete the selected control integration.
-
05
Household handoff and support
We confirm zone names on the family’s real devices, explain grouping and everyday control, and leave a documented path for service.
FAQs
Product questions
What is the difference between the VSSL A.3x and A.6x?
The A.3x provides three stereo zones and six amplified channels. The A.6x provides six stereo zones and twelve amplified channels. Both are rated at 50 watts per channel into 8 ohms and 75 watts into 4 ohms, and both list the same primary native-streaming platforms.
Can different rooms play different music?
Yes. VSSL describes each zone as independently streamable, so separate users can play separate content in available rooms. Zones can also be grouped through the supported AirPlay 2 or Google Cast workflows when shared music is preferred.
Does the A.3x or A.6x use Wi-Fi?
The current VSSL setup guide identifies the A.3x and A.6x as wired-network devices. Davis Audio & Video plans an Ethernet connection to the equipment location and tests discovery from the home’s wireless devices across the managed network.
Which music platforms work with the VSSL X Series?
VSSL lists AirPlay 2, Google Cast, Spotify Connect and Alexa Cast for the A.3x and A.6x. Availability of specific music services also depends on the user’s app, account, region and the supported casting protocol.
Can a television or other local source play through several rooms?
The A.3x and A.6x include matrixed analog inputs that can be assigned to zones, plus an optical input. The source format, delay, level and room-selection behavior should be tested for the intended application.
Can the VSSL X Series work with Control4?
VSSL currently lists a Control4 driver for the X Series, along with Crestron OS3 and Crestron SIMPL options. Davis Audio & Video verifies driver version, supported commands and network requirements for the project.
How many speakers can one VSSL zone power?
There is no safe universal number. The answer depends on speaker impedance, wiring topology, sensitivity, wire length and required volume. Davis Audio & Video calculates the complete load and confirms it against the current manufacturer documentation.
What warranty does VSSL provide?
VSSL’s current warranty page states that products purchased on or after January 1, 2025 receive a limited two-year warranty from shipment or original retail purchase through an authorized dealer, subject to its published terms and exclusions.
