CORE 5 for large, audio-rich homes
Use when a project needs substantial processing, many integrations, seven native high-resolution audio zones, 4K on-screen navigation, and broad wireless capability.
The processing and integration foundation
Control4 Controllers: CORE and CA-Series System Design
The controller is the operating foundation of a Control4 system. It coordinates devices, executes programming, supports interfaces, and—in the CORE family—can provide high-resolution audio and on-screen control. Selecting the right controller is an engineering decision based on the system’s present workload, required interfaces, resilience, and realistic expansion plan.
Current families

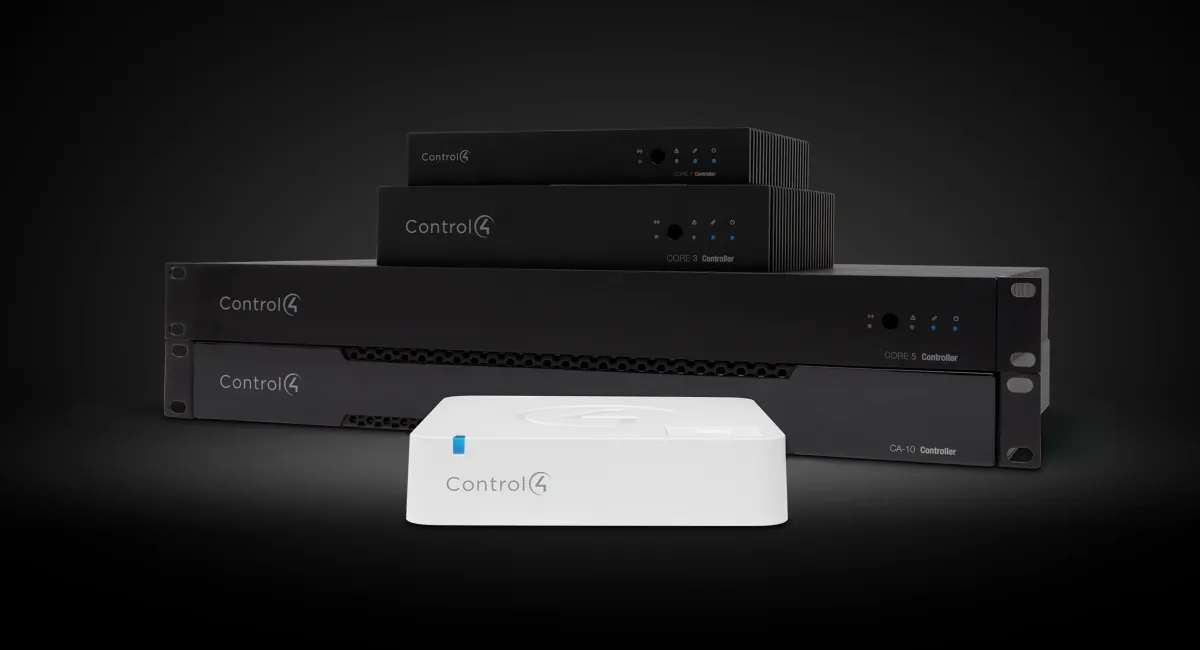

CORE 5, CORE 3, CORE 1, CORE lite, CA-10, and CA-1
Sizing factors
Device count, audio zones, integrations, interfaces, and programming load
Wireless roles
Model-dependent Wi-Fi, Zigbee, and Z-Wave communication
Design principle
Size for reliable operation and sensible growth—not model prestige
Integrator guidance
Control4 Controllers in a complete system designed by Davis Audio & Video.
Control4 controllers translate a homeowner’s command into coordinated action across lighting, shades, audio, video, climate, security, access, and third-party products. They maintain the project configuration and run the logic behind scenes such as Good Night or Away. CORE controllers also combine automation with native high-resolution music streaming and a 4K HDMI on-screen interface on selected models.
CORE 5 is positioned for large systems and provides seven independent high-resolution audio zones. CORE 3 targets medium systems with four audio zones. CORE 1 is designed for smaller projects and offers two zones. CORE lite is a single-room-oriented bundle. CA-10 adds high-availability processing for extra-large projects, while CA-1 provides a focused automation controller for projects that do not require the CORE audio and on-screen feature set.
A larger controller does not correct weak wiring, poor network design, outdated drivers, or undisciplined programming. Davis Audio & Video evaluates the complete project: processor load, Zigbee topology, rack design, power protection, serial and contact connections, audio distribution, remote services, and what must keep working if an individual component fails.
Matching the controller to the project
CORE 3 for balanced whole-home systems
A strong fit for medium projects requiring four native audio zones, 4K on-screen control, and integrated Wi-Fi, Zigbee, and Z-Wave communication.
CORE 1 for focused systems
Appropriate for smaller homes, apartments, entertainment systems, or secondary locations needing two native audio zones and a capable Control4 foundation.
CORE lite for a single-room starting point
A packaged approach for one-room entertainment and automation, with remote options selected for the desired interface.
CA-10 or CA-1 for specialized architecture
CA-10 supports extra-large, resilience-focused projects; CA-1 is useful when basic automation processing is needed without native multi-zone audio.
What the controller contributes
Automation processing
Runs drivers, bindings, scenes, schedules, conditional logic, notifications, and coordinated commands across compatible subsystems.
Audio services
CORE models provide model-dependent independent zones of high-resolution streaming with EQ tools and supported music services.
System interfaces
Supports the app, Halo remotes, touchscreens, keypads, voice integrations, intercom, and on-screen control where available.
Device communication
Model-dependent Ethernet, Wi-Fi, Zigbee, Z-Wave, IR, serial, contacts, relays, and USB connections bridge the digital and physical systems in the home.
Cloud services
With current Control4 Connect services, supported systems can add remote access, cloud backup, proactive alerts, voice features, Routines, Intercom Anywhere, and other offerings.
Professional design
Controller selection and system architecture
Size from a device and driver inventory
Davis Audio & Video counts physical devices, software drivers, media zones, camera views, user interfaces, automation logic, and expected additions before selecting the processor.
Design wireless networks deliberately
Zigbee and Z-Wave performance depend on device placement, mesh health, interference, and project scale. The controller location is chosen as part of that topology.
Protect power and provide cooling
Controllers belong on stable power with surge protection or UPS strategy appropriate to the system. Racks and cabinets need airflow, labeling, and service access.
Plan resilience where downtime matters
A CA-10 architecture can add redundancy and fail-safe capability for very large homes, but resilience also requires robust networking, switching, storage, power, documentation, and service planning.
Leave responsible expansion capacity
Davis Audio & Video avoids both undersizing and unnecessary overbuying. Capacity should cover foreseeable additions without turning a modest project into an overcomplicated system.
A controller is only as good as the system around it
Managed network
Controllers, touchscreens, streaming services, surveillance, and mobile control rely on stable routing, switching, DNS, Wi-Fi, and documented IP addressing.
Audio distribution
CORE audio can feed local or distributed zones, while larger systems may add Triad matrices and amplifiers for higher zone counts and speaker loads.
Lighting and shades
Control4 or integrated Lutron systems provide the scene layer that lets one command coordinate electric and natural light.
Security and access
Door stations, Chime, Luma surveillance, locks, sensors, and third-party panels require model-specific drivers and careful permission design.
Specifications
Control4 Controllers specifications
Control4 controller family comparison
| CORE 5 | Recommended for large systems; 7 independent high-resolution audio zones; 4K HDMI on-screen control; Wi-Fi, Zigbee, and Z-Wave |
|---|---|
| CORE 3 | Recommended for medium systems; 4 independent high-resolution audio zones; 4K HDMI on-screen control; Wi-Fi, Zigbee, and Z-Wave |
| CORE 1 | Recommended for small systems; 2 independent high-resolution audio zones; 4K HDMI on-screen control; Wi-Fi and Zigbee |
| CORE lite | Single-room-oriented controller bundle with compatible Control4 remote options |
| CA-10 | High-availability automation controller for extra-large deployments, with redundancy/fail-safe architecture and a manufacturer-listed five-year warranty |
| CA-1 | Entry automation controller with network, serial, Wi-Fi, and Zigbee connectivity; expandable Z-Wave support |
Features that vary by model
| Native audio outputs | Number and connector type differ across CORE models |
|---|---|
| On-screen interface | 4K HDMI output is available on CORE 5, CORE 3, and CORE 1 |
| Wireless radios | Wi-Fi, Zigbee, and Z-Wave availability varies by controller |
| Physical control ports | IR, serial, contacts, relays, USB, and audio connections vary; verify the current specification sheet |
| Rack form factor | Dimensions, mounting accessories, and power requirements vary by model |
| Control4 services | Connect features require current eligibility, software, account, internet, and subscription |
Davis Audio & Video process
From product decision to a system that is simple to live with.
-
01
Discovery and project definition
Davis Audio & Video starts with the room, the household, and the result the client expects—not with a product list. We document existing equipment, construction conditions, wiring access, network health, aesthetic priorities, security requirements, and the controls people already understand.
-
02
Engineering and coordination
We select the correct Control4 or Lutron architecture, verify electrical and low-voltage requirements, coordinate with architects, designers, builders, electricians, HVAC professionals, and window-treatment workrooms, and produce a system plan that can be installed and serviced without guesswork.
-
03
Installation and programming
Devices are mounted, wired, labeled, updated, and programmed as one operating system. Scenes, schedules, room-off behavior, notifications, user permissions, and remote interfaces are tested from the controls the family will actually use.
-
04
Commissioning and client handoff
We verify normal operation, failure recovery, network communication, audio or video performance, and safety-related behavior. The homeowner receives a clear walkthrough focused on everyday actions. Davis Audio & Video considers the project unfinished if the system is powerful but difficult to operate.
-
05
Long-term support
The final configuration is documented so future service, additions, or renovations can be completed efficiently. Davis Audio & Video can support software updates, programming changes, seasonal adjustments, and expansion as the home evolves.
FAQs
Product questions
Which Control4 controller do I need?
The correct model depends on device count, driver complexity, audio zones, interfaces, wireless requirements, physical I/O, resilience, and future expansion. A site survey and project inventory are more reliable than choosing by square footage alone.
What is the difference between CORE 5, CORE 3, and CORE 1?
Control4 positions CORE 5 for large systems with seven native audio zones, CORE 3 for medium systems with four, and CORE 1 for smaller systems with two. Wireless radios, physical connections, and processing capacity also differ.
Does a Control4 controller replace my router?
No. The controller runs the automation project; it depends on the home network. A properly designed router, switches, access points, internet connection, and network security remain separate requirements.
Can one controller run the entire house?
Many homes use one primary controller, sometimes with additional controllers or extenders for audio, I/O, Zigbee placement, local entertainment, or resilience. Architecture depends on the project.
Does Control4 work without the internet?
Many local automation commands can continue on the local network, but streaming services, remote access, cloud backup, voice services, notifications, updates, and other internet-dependent features may not.
What is the CA-10 used for?
CA-10 is intended for extra-large projects that require high-availability automation processing and added redundancy. It is not normally necessary for a modest home.
Can I upgrade an older Control4 controller?
Often. Davis Audio & Video audits OS compatibility, drivers, interfaces, Zigbee devices, audio connections, programming, account status, and rack infrastructure before planning a migration.
Will upgrading the controller make the system faster?
It can improve processing and enable newer features, but performance problems may also come from network issues, failing devices, outdated drivers, excessive programming, poor power, or wireless interference. Davis Audio & Video diagnoses the full system first.
Can Control4 controllers stream high-resolution audio?
CORE controllers support multiple simultaneous high-resolution audio streams, with the number of independent zones varying by model. Available services and resolution depend on the current platform and source.
How much expansion capacity should I plan?
Enough for realistic projects such as additional rooms, shades, cameras, lighting loads, or audio zones. Davis Audio & Video documents likely growth and recommends capacity without turning hypothetical additions into unnecessary cost.
